What 3d X Rays Dentistry Shows And Is It Necessary?

We are always looking for better ways to help patients, and 3D dental X-ray imaging is a big step forward in dentistry.

3D dental imaging, or Cone Beam Computed Tomography (CBCT), makes detailed, three-dimensional pictures of teeth, soft tissues, nerves, and bones in one scan. This technology shows more than 2D X-rays can, helping dentists find problems more easily and plan better treatments.

At top healthcare places, knowing how 3D dental scans help is key to good oral health choices.Explaining the advanced images provided by 3d x rays dentistry (CBCT) and when they are required for diagnosis.

Key Takeaways

• 3D dental X-ray imaging provides detailed, three-dimensional images for improved diagnosis.
• Cone Beam Computed Tomography (CBCT) captures complete oral structures in one scan.
• This technology boosts diagnostic accuracy and treatment planning.
• 3D dental imaging is great for complex dental work.
• It gives a clearer view than traditional 2D X-rays.

The Revolution of 3D X-Rays in Dentistry

3D X-rays have changed dental care, making treatment planning clearer. Dental experts now diagnose and treat patients better with 3D dental imaging.

What is Cone Beam Computed Tomography (CBCT)?

Cone Beam Computed Tomography (CBCT) is key in today’s dentistry. CBCT scans use a cone-shaped X-ray beam to capture data in one rotation around the patient’s head. It creates detailed, three-dimensional images of teeth, soft tissues, and bone.

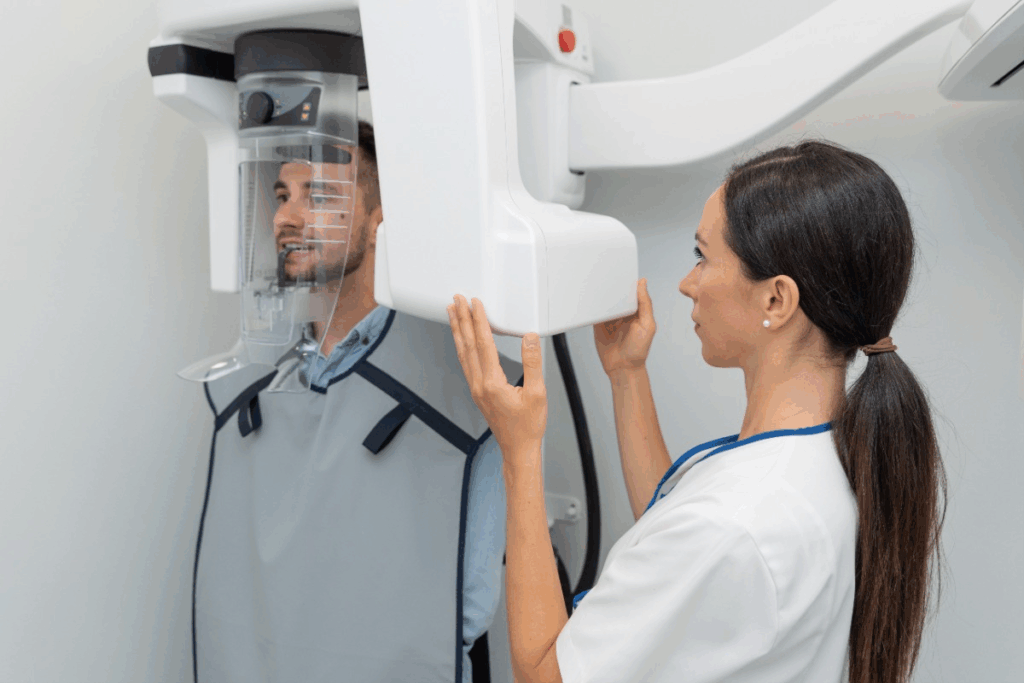

The patient sits in the CBCT machine, which rotates around their head. It takes many images from different angles. Then, software turns these images into a 3D model, showing the patient’s mouth in full detail.

How 3D Dental Imaging Technology Works

3D dental imaging captures many 2D images and turns them into a 3D model. A CBCT scanner emits a cone-shaped X-ray beam, capturing a lot of data in one scan. The scanner’s detector catches the X-ray beam after it goes through the patient’s head, creating the 3D image.

The 3D model shows dental experts the patient’s teeth, soft tissues, and bone in detail. This helps in making accurate diagnoses and treatment plans, even for complex cases.

From Flat to Dimensional: The Evolution of Dental Imaging

Dental experts used to rely on 2D X-rays. But, these had big limitations. Now, they use 3D imaging instead.

For a long time, dental professionals used 2D X-rays. These showed teeth and surrounding areas in a flat, two-dimensional way.

Limitations of Traditional 2D X-Rays

2D X-rays squish three-dimensional teeth into flat images. This causes problems like magnification, distortion, and superimposition. These issues can lead to wrong diagnoses and treatment plans.

Problems with Magnification, Distortion, and Superimposition

Magnification can make measurements wrong. Distortion can change how things look. Superimposition happens when things overlap, hiding important details. These problems make it hard to diagnose and plan treatments.

The Breakthrough of Three-Dimensional Visualization

3D dental imaging changed everything. It gives a full, three-dimensional view of teeth and structures. This tech fixes the problems of 2D X-rays by showing things clearly.

With 3D imaging, dental experts can see the mouth’s complex anatomy. This leads to more accurate diagnoses and better treatment plans.

What Does 3D Dental Imaging Actually Show?

3D dental imaging lets us see the mouth’s complex structures clearly. It gives dental experts a full view of the mouth. This helps them diagnose and treat problems better.

Comprehensive View of Teeth, Soft Tissues, and Bone

3D dental imaging shows teeth, soft tissues, and bone in one scan. This detailed view helps understand how these parts work together. It’s key for complex dental work.

Nerve Pathway Visualization

It also shows nerve pathways, which is vital for safe dental work. Dentists can plan treatments more carefully with this info.

Detailed Bone Structure and Quality Assessment

The tech gives a close look at bone structure and quality. This is important for dental implants. It helps spot issues early.

Soft Tissue Analysis Capabilities

3D dental imaging can also check soft tissues. It looks at gum health and other soft tissues. This is key for treating gum diseases.

3D dental imaging greatly improves dental care. It helps diagnose and treat many dental issues. It’s a big step forward in dental health, giving patients better care.

Key Diagnostic Benefits of 3D Dental Scans

Three-dimensional dental imaging has changed how we diagnose and treat dental issues. It offers many benefits, making patient care better and treatments more effective.

Precise Measurements and Proportions

3D dental scans give us exact measurements and proportions. This is key for dental work like implants and orthodontics. They let us see the jawbone’s size, bone density, and how different parts fit together.

Accurate Localization of Impacted Teeth

3D dental scans help us find impacted teeth accurately. This is vital for the right treatment plan. They show where the tooth is in relation to nerves and other teeth.

Identification of Facial Asymmetry

Facial asymmetry can affect how we look and function. 3D dental scans let us check the face’s symmetry closely. We can spot any differences and plan fixes.

Airway Abnormality Detection

3D dental imaging also finds airway problems. This is key for sleep apnea diagnosis. It shows narrow or blocked airways that might cause sleep breathing issues.

In summary, 3D dental scans are changing dentistry. They give us precise data, help find impacted teeth, spot facial issues, and find airway problems. This makes patient care better and treatments more successful.

Clinical Applications Across Dental Specialties

3D dental imaging has changed dental care a lot. It gives us better ways to diagnose and treat patients. This is true for many dental fields.

Implant Planning and Placement

3D dental imaging is key for planning and placing dental implants. 3D X-rays help us see bone density and volume. This is important for placing implants right.

This technology lets us:

• Check the bone structure
• Plan the best spot and angle for implants
• Stay away from nerve damage

Orthodontic Treatment Assessment

3D dental imaging has also changed orthodontics. It gives us a clear view of teeth and bone. This helps us plan treatments better.

We can:

• Make plans that fit each patient
• Guess how well a treatment will work
• Keep track of how treatment is going

Endodontic Diagnosis and Complex Root Canal Therapy

In endodontics, 3D X-rays are a big help. They show us the root canal’s details. This is key for:

• Finding out about complex root canals
• Planning and doing complex root canal treatments
• Finding problems early

Medical Expert, a top endodontist, says, “3D imaging has changed how we handle tough root canal cases. It lets us treat more precisely and effectively.”

Temporomandibular Joint (TMJ) Evaluation

The TMJ is hard to diagnose with old imaging. 3D dental X-rays give us a full view of it. This helps us:

• Look at the joint space and bone
• Find signs of wear or other problems
• Plan the right treatment

Using 3D dental imaging in these areas improves patient care and results. 3D X-rays give us detailed info. This leads to more accurate diagnoses and better treatments.

When Are 3D Dental X-Rays Necessary?

Not all dental procedures need 3D X-rays. But, they are key for treatments that require detailed work. We use 3D dental X-rays to fully understand the patient’s teeth, which is vital for complex cases.

Complex Surgical Procedures

For complex surgeries like dental implants or wisdom teeth removal, 3D X-rays are essential. They give us detailed anatomical information. This helps us plan the surgery with great care, lowering the risk of problems and improving results.

Challenging Diagnostic Cases

In tough cases, 3D dental X-rays show more than 2D X-rays. They help us spot issues like complex root structures or hidden infections that might not be seen other ways.

Patients with Anatomical Variations

Patients with unique anatomy, like unusual bone density or nerve paths, get a lot from 3D X-rays. These images let us see their special anatomy and plan their treatment.

Pre-Surgical Planning Requirements

Planning before surgery is key in many dental treatments. 3D X-rays help us make detailed plans. This ensures we’re ready for any challenges that might come up during surgery.

Using 3D dental X-rays in these situations boosts our accuracy in diagnosis and treatment. This leads to better results for our patients.

Scenarios Where Traditional 2D X-Rays May Suffice

Even though 3D dental X-rays are advanced, there are times when 2D X-rays are better. This happens when the case is simple, the exam is routine, or when a quick and affordable tool is needed.

Routine Dental Examinations

For regular dental visits, 2D X-rays are usually enough. They give a basic look at the teeth and gums. Dentists can spot common problems like cavities and infections with them.

Simple Restorative Procedures

For simple procedures like fillings or easy tooth extractions, 2D X-rays work well. These tasks don’t need the detailed view that 3D X-rays offer.

Regular Monitoring of Known Conditions

Patients with ongoing dental issues, like gum disease, can be checked with 2D X-rays. This helps dentists see how the disease is changing. They can then adjust treatment plans as needed.

The following table summarizes the scenarios where traditional 2D X-rays may be sufficient:

In conclusion, 3D dental X-rays are a big step forward in dental care. But, 2D X-rays are also valuable for routine checks, simple procedures, and tracking ongoing conditions. Knowing when to use each helps dentists give the best care while being smart with resources.

Radiation Considerations: 3D vs. 2D Dental Imaging

Dental technology is getting better, and it’s important to know the difference in radiation between 3D and 2D imaging. Dentists and patients need to understand the safety and effectiveness of these new technologies.

Comparative Radiation Exposure Levels

3D dental imaging uses more radiation than 2D X-rays. But, the exact amount depends on the technology and how dentists use it.

“The effective dose from a typical dental CBCT scan can range from 30 to over 1,000 microsieverts,” says a study. This shows we need to think carefully about the technology and how it’s used.

ALARA Principle in Dental Imaging

The ALARA principle is key in radiology. It means we should use the least amount of radiation needed for good images. We follow this by making sure our imaging is just right and not too much.

Risk Mitigation Strategies

Dental professionals take steps to lower radiation risks. We use thyroid collars and lead aprons to protect sensitive areas. We also adjust X-ray settings and only take scans when needed.

• Optimizing scan protocols to reduce dose
• Using protective shielding for patients
• Limiting the field of view to the region of interest

Patient-Specific Considerations

Every patient is different, and their needs affect what imaging we choose. Kids and pregnant women need extra care because they’re more sensitive to radiation. We adjust our imaging to fit each patient’s needs, keeping safety in mind.

By knowing the radiation differences between 3D and 2D imaging and taking steps to reduce it, we can make sure patients get the best care. This way, we keep them safe while using the latest imaging technology.

Cost Analysis and Insurance Coverage

Understanding the cost of 3D dental X-rays is key for those thinking about this technology. We’ll look at the costs and what affects them.

Average Costs of 3D Dental X-Ray Procedures

The price of 3D dental X-rays changes based on several things. These include where you go, the dentist’s skill, and the technology used. On average, you might pay between $200 and $500 for a 3D dental X-ray.

As the table shows, 3D dental X-rays cost more than 2D X-rays. But they give more detailed info for diagnosis.

Insurance Reimbursement Policies

Insurance for 3D dental X-rays varies a lot. Some plans cover part of the cost, while others don’t. It’s important to check your policy to see what’s covered.

Key factors influencing insurance coverage include:

• The specific insurance provider and policy
• The medical necessity of the 3D X-ray as determined by the dentist
• The type of dental procedure or treatment being considered

Cost-Benefit Evaluation for Patients

When thinking about 3D dental X-rays, weigh the benefits against the cost. While they’re pricier than traditional X-rays, they offer detailed info. This can lead to better diagnoses and treatment plans.

The benefits of 3D dental X-rays include:

• More accurate diagnoses due to detailed imaging
• Better treatment planning and outcomes
• Potential reduction in the need for additional diagnostic procedures

By considering these points, patients can make smart choices about their dental care.

The Future of 3D X-Rays in Dentistry

3D X-rays are becoming more important in dental care. They are expected to play a big role in diagnosing dental problems. New technologies are making 3D X-rays even better.

Emerging Technological Advancements

Dental imaging is getting a lot better. The pictures are clearer and more accurate. This means doctors can make better plans for treatment.

Also, 3D X-rays are getting safer. They use less radiation, which is good for patients.

New software is being developed. It uses artificial intelligence (AI) to help doctors understand scans better. AI can spot problems that are hard to see.

Integration with Digital Smile Design and CAD/CAM

3D X-rays are being used with digital smile design and CAD/CAM. This is changing how dentists do cosmetic and restorative work. It makes planning and doing dental work more precise.

Digital smile design lets dentists show patients what their smile could look like. With 3D X-rays, dentists can see both hard and soft tissues. This helps plan treatments better.

Artificial Intelligence Applications in 3D Imaging

AI is making 3D images better. It helps take pictures faster and with less need for retakes. It also finds problems that might be missed by doctors.

Improving Accessibility and Reducing Costs

3D X-rays are becoming more common and cheaper. This is because more companies are making them. It’s making dental care more affordable for everyone.

Cloud computing is also helping. It makes it easier for dental offices to share and store 3D images. This makes 3D X-rays even more useful.

Conclusion: Making Informed Decisions About Dental Imaging

3D dental imaging has changed dentistry a lot. It gives detailed views and helps in diagnosing. 3D X-rays, or cone beam computed tomography (CBCT), are key in planning treatments.

Patients get many benefits from 3D imaging. They get accurate measurements and can find out about teeth and facial issues. This tech is great for complex surgeries and tricky cases.

But, it’s important to know the downsides of 3D dental X-rays. They involve radiation, which can be a risk. Knowing the pros and cons helps patients make smart choices about their dental health.

Talk to your dentist about what you need. They can pick the best imaging for you. This way, you get care that fits your needs perfectly.

FAQ

References

World Health Organization. 3D Dental X-Ray Imaging: Uses and Necessity. Retrieved from https://www.who.int/publications/i/item/9789241515564
