The Roadmap to Precision: Diagnostic Protocols for Ureteroscopy

The Roadmap to Precision: Diagnostic Protocols for Ureteroscopy

The successful execution of ureteroscopy at Liv Hospital relies heavily on a rigorous pre-operative diagnostic phase. This phase is designed not merely to confirm the diagnosis but to construct a detailed anatomical and functional map of the patient’s urinary tract. Ureteroscopy is a precision surgery; the surgeon must know the exact coordinates, density, and size of the target (stone or tumor) before entering the operating room. The diagnostic algorithm transitions from non-invasive imaging to functional assessments, ensuring that the chosen intervention is safe, effective, and indicated.

The diagnostic process typically begins with the patient’s presentation of symptoms but is solidified through advanced radiological and biochemical evaluation.

Icon LIV Hospital

Non-Contrast Computed Tomography (NCCT): The Gold Standard

image 22 15 LIV Hospital

The undisputed gold standard for diagnosing urolithiasis is the Non-Contrast Computed Tomography (NCCT) of the abdomen and pelvis. Unlike ultrasound or plain X-rays, NCCT provides sub-millimeter cross-sectional detail without the interference of bowel gas or bone.

  • Stone Detection: It detects virtually all stone types, including uric acid stones, which are “radiolucent” (invisible) on standard X-rays.
  • Hounsfield Units (HU): This is a critical CT scan metric that measures the density (hardness) of the stone. A stone with low HU (<600) is soft and will likely dust easily with the laser. A stone with high HU (>1000), such as calcium oxalate monohydrate, is tough. Knowing the HU beforehand allows the surgeon to select the appropriate laser fiber size and power settings.
  • Skin-to-Stone Distance: While more relevant for shockwave lithotripsy, CT anatomy helps with planning.
  • Anatomical Mapping: The CT scan reveals the renal anatomy, specifically the infundibular angle (the angle of the drainage tubes). A steep lower pole angle might make flexible ureteroscopy challenging, influencing the choice of access sheath or the decision to perform PCNL instead.
Icon 1 LIV Hospital

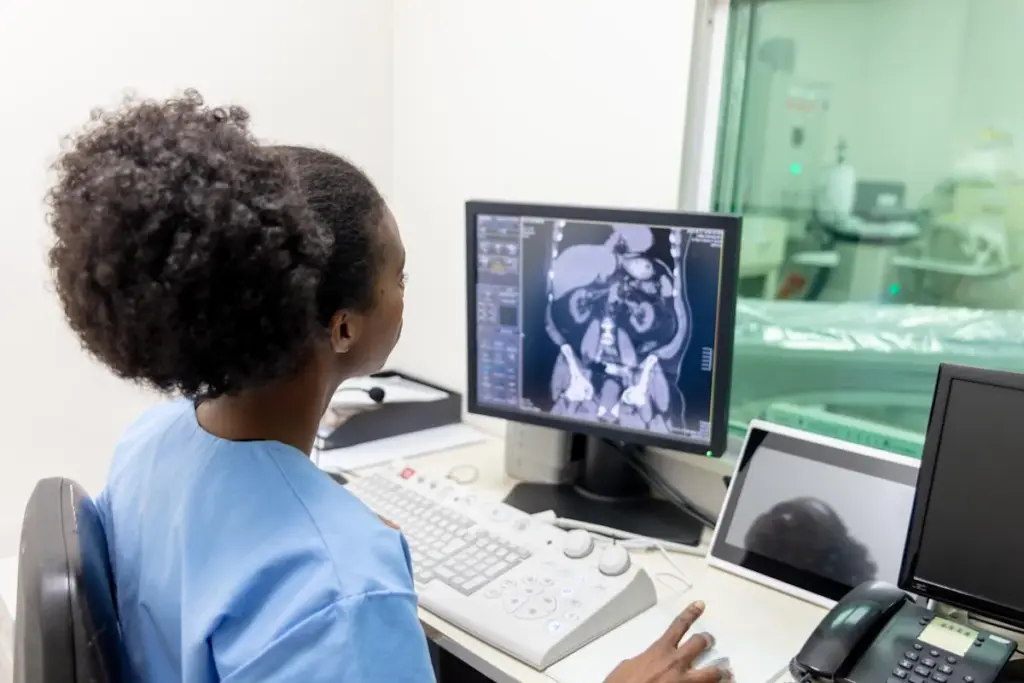

CT Urography (CTU) with Contrast

CT Urography (CTU) with Contrast

For patients presenting with hematuria without stones or suspected Upper Tract Urothelial Carcinoma (UTUC), a standard NCCT is insufficient. A CT Urography is performed. This involves a multi-phase scan: a non-contrast phase, a nephrogenic phase (kidney tissue enhancement), and an excretory phase (contrast filling the ureters). The excretory phase creates a “cast” of the internal lining of the ureter and kidney. Filling defects—areas where the contrast cannot flow—often indicate the presence of a tumor. This roadmap guides the ureteroscope directly to the lesion for biopsy.

Ultrasonography and Plain Radiography (KUB)

Ultrasonography and Plain Radiography (KUB)

While CT is the gold standard, Ultrasound plays a vital role as a first-line screening tool, especially in children and pregnant women, to avoid radiation. It is excellent for detecting Hydronephrosis (swelling of the kidney), which indicates the degree of obstruction. A Plain Abdominal Radiograph (KUB) is often used in conjunction to determine if a stone is radio-opaque. This is crucial for follow-up: if a stone is visible on X-ray, follow-up can be performed with X-rays rather than repeated CT scans, reducing radiation exposure.

Nuclear Renography (Functional Imaging)

In cases of chronic obstruction or large staghorn stones, the surgeon must determine whether the kidney remains functional. A Nuclear Renography (DTPA or MAG3 scan) is performed. A radioactive isotope is injected, and a gamma camera measures how well each kidney takes up and drains the tracer. If a kidney is found to contribute less than 10% of total renal function, ureteroscopy for stone removal may be futile, and a nephrectomy (removal of the kidney) might be the better option to prevent future infection and pain.

Pre-Operative Biochemical Evaluation

image 1 3551 LIV Hospital

Before any ureteroscopic intervention, the biological environment must be assessed:

  • Urinalysis and Urine Culture: These are the most critical safety tests. Operating in the presence of infected urine can lead to fatal urosepsis. High-pressure irrigation during ureteroscopy can force bacteria into the bloodstream. Therefore, a sterile urine culture is mandatory. If infection is present, the surgery is postponed, and the patient is treated with culture-specific antibiotics.
  • Renal Function Panel: Serum Creatinine and eGFR levels are checked to assess baseline kidney function. This influences contrast usage and medication dosing.
  • Coagulation Profile: Unlike PCNL, flexible ureteroscopy is relatively safe in patients with coagulopathy. However, blood clotting parameters (INR, PTT) are checked to manage bleeding risks, especially if a biopsy or tumor ablation is planned.

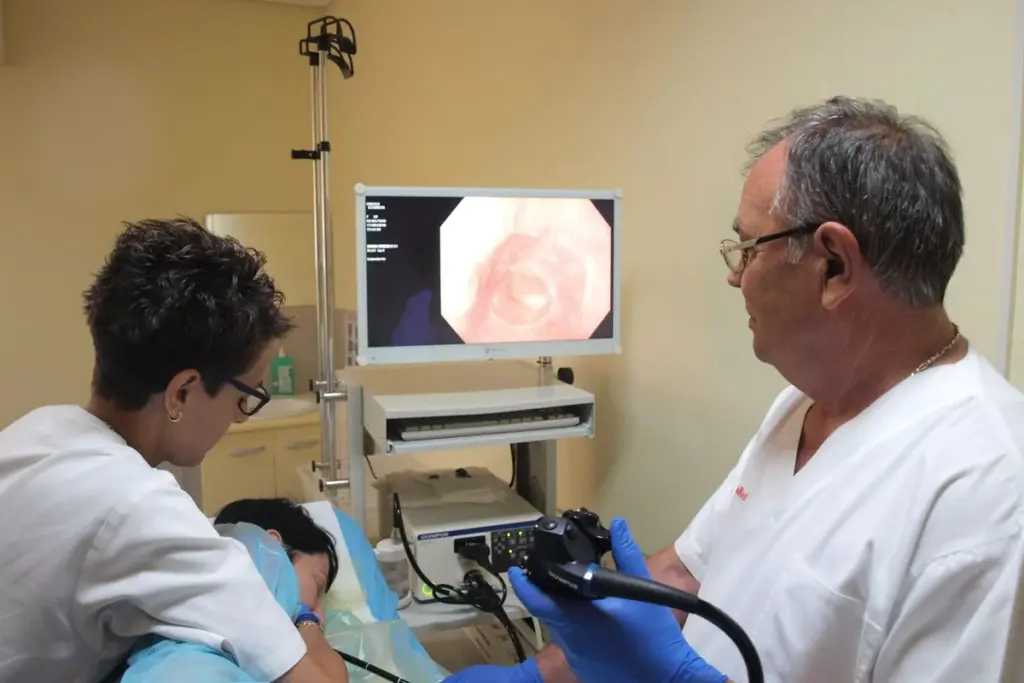

Diagnostic Ureteroscopy

image 3 3326 LIV Hospital

In some complex diagnostic dilemmas—such as “essential hematuria” where bleeding occurs with routine imaging—the procedure itself becomes the final diagnostic test. Diagnostic Ureteroscopy involves systematically inspecting each kidney calyx. If a lesion is found, narrow-band imaging (NBI)—a special light filter on digital scopes—can be used to highlight abnormal vascular patterns characteristic of tumors, guiding accurate biopsy.

30 Years of
Excellence

Trusted Worldwide

With patients from across the globe, we bring over three decades of medical

Book a Free Certified Online
Doctor Consultation

Clinics/branches
LIV Hospital Expert Healthcare
Group 346 LIV Hospital

Reviews from 9,651

4,9

Was this article helpful?

Was this article helpful?

We're Here to Help.
Get in Touch.

Send us all your questions or requests, and our expert team will assist you.

Doctors

FREQUENTLY ASKED QUESTIONS

Why is a non-contrast CT scan preferred over a standard X-ray for kidney stones?

A non-contrast CT scan provides a 3D view with vastly superior resolution compared to a 2D X-ray. Crucially, it can visualize “radiolucent” stones (like uric acid stones) that are entirely invisible on standard X-rays. It also allows measurement of the stone’s density (hardness) in Hounsfield Units, which helps the surgeon predict how the stone will respond to laser energy, something an X-ray cannot.

Hounsfield Units measure the radiodensity of the stone on a CT scan. This directly correlates with the stone’s physical hardness. A low HU (<500) indicates a soft stone that will “dust” quickly into powder. A high HU (>1000) suggests a tough stone (like calcium oxalate monohydrate) that will require high-energy laser fragmentation and basket retrieval. Knowing this allows the surgeon to prepare the correct laser fibers and baskets beforehand.

Ureteroscopy involves irrigating the inside of the kidney with fluid to maintain visibility. This creates elevated pressure within the kidney. If the urine contains bacteria, this pressure can force live bacteria directly into the patient’s bloodstream, causing a severe, life-threatening systemic infection called urosepsis. A negative culture ensures the urine is sterile, minimizing this risk.

Ultrasound is excellent for detecting kidney swelling (hydronephrosis) but is poor at visualizing the ureter itself, especially the mid-section, which is often obscured by bowel gas. It also cannot accurately measure stone size or hardness. Therefore, while useful for screening, it is generally insufficient for the precise surgical planning required for ureteroscopy; a CT is almost always needed for the “roadmap.”

A Nuclear Renogram assesses kidney function, not just its anatomy. If a stone has blocked a kidney for a long time, the kidney tissue may have died. The scan calculates what percentage of the total body work that specific kidney is doing. If the kidney is functioning at less than 10%, repairing it via ureteroscopy might not be worth the risk, and removal of the non-functioning organ might be considered instead.
